Products - Hardware

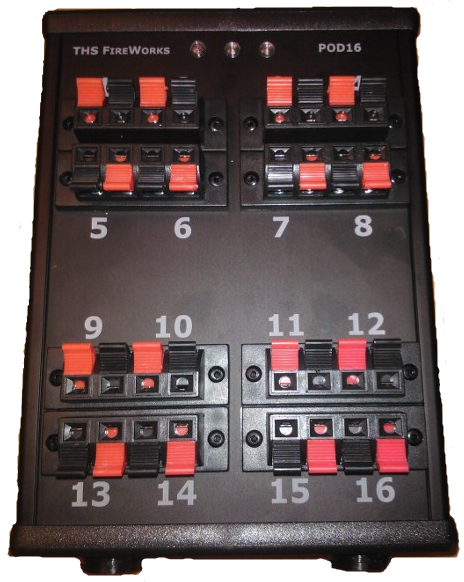

THS FireWorks POD16
|
POD16 - 16 channel Pyro
Output Device
Price: 7500 SEK
16 Outputs for e-matches. You can connect up to 5 e-matches (~2 Ohm each) per output, either serial or parallel.
Each Output can be configured with fire-channel and delay of up to 10 minutes, with a precision of 0,01 second.
The POD 16 have several measuring capabilities, such as measuring of E-matches, charged volts individually per output and incoming voltage.
|
Specifications
| Chassis: |
Black anodized aluminium |
| Operating voltage: |
9-18VDC (typical 12VDC) |
| Power usage: |
~ 20mA Standby |
| |
~ 40mA Armed (+ 20mA / Output at launch) |
| Number of Outputs: |
16 |
| E-matches / Output: |
up to 5 parallell OR 5 serial |
| |
(depending on the e-matches!) |
| Delay / Output: |
0-600 seconds (steps of 0,01s) |
| Connector In / Trough: |
2 - 9pin female CPC series1 with gold plated connectors |
|

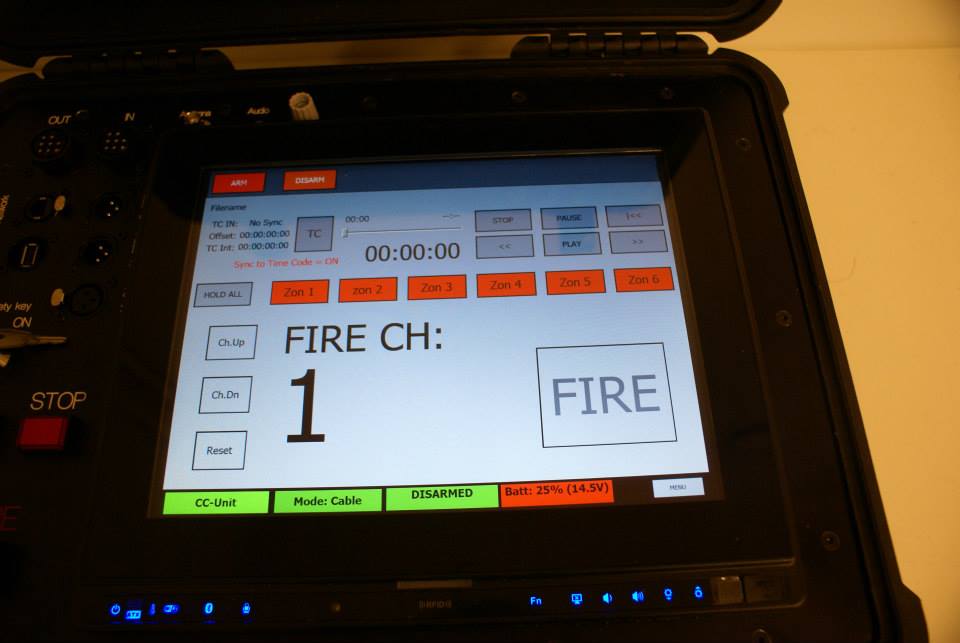

THS FireWorks Controller
|
Controller
Price: 50000 SEK
The Master Controller - With this controller you can check all connect devices and e-matches. It can play music and sync to incomming time-code. Fire in auto-mode och manual fire.
Communicate with PODs via cable or Wireless.
All displayed in a 12" big screen with touchpanel.
|
Specifications
| Chassis: |
Hard Peli Case, black |
| Operating voltage: |
9-18VDC, built-in Li-Ion battery |
| Outputs: |
- Audio, 3,5mm
- Audio, 2x XLR
- 2x Pyro-connectors
- Wireless
|
| Input: |
- Time-code
- USB
- Network (RJ45)
|
| Buttons |
- Fire
- Arm
- Stop
- Safety key
|
|

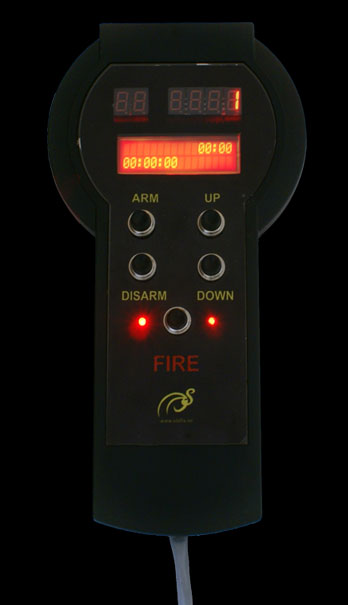

THS FireWorks Hand held controller
|
Hand held controller
Price: 5000 SEK
Three clearly visible displays, and five buttons.
The upper right numeric display show next channel to be launched and the bottom alphanumerical show two timers, one with minutes, seconds and 1/100sec since first firing after arming, and one showing seconds and 1/100sec since last firing.
On each side of the firing button is a LED that is on when the unit have been armed.
|
Specifications
| Chassis: |
Black plastic |
| Operating voltage: |
9-18VDC (typical 12VDC) |
| Power usage: |
~ 100mA |
| Numerical displays: |
Two |
| Alphanumerical displays: |
One - with 2 lines of 16 characters per line |
| Connector power/data: |
One - 9pin male CPC series1 with gold plated connectors |
|

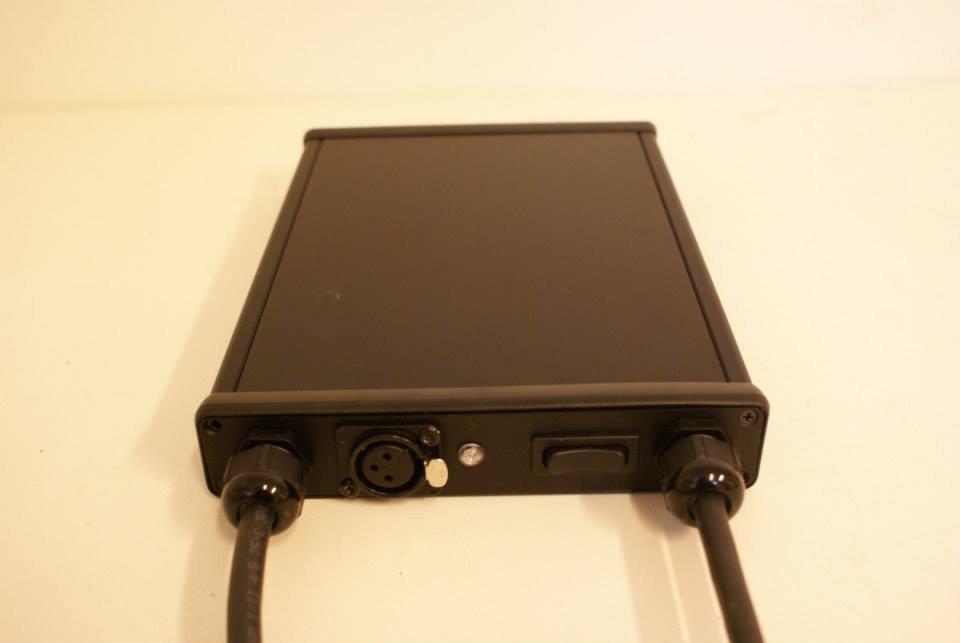

THS FireWorks Powerbox
|
Powerbox Li-ion
Price: 5000 SEK
A combined battery and repeater unit for power source and repeating the control signals in large fireworks with many devices. After about 20-30 devices a Powerbox is needed depending av cable length.
The unit can be put into standby och contant on mode. In standby mode the unit turn of the output voltage to the connected devices and wait for signal. When signal is transmitted from Controller the unit turns to power on.
|
Specifications
| Chassis: |
Black anodized aluminium |
| Battery: |
4-cell Li-Ion, 3,7Ah |
| Capacity: |
20 PODs in 7 hours (DISARMED), 30 hours in standby mode |
| Number of Outputs: |
2 |
| POD's / Output: |
up to 32 |
| |
(depending on the number of simultaneous firings) |
| Connector Out: |
9pin male CPC series 1 with gold plated connectors
9pin female CPC series 1 with gold plated connectors |
| Connector In: |
9pin male CPC series 1 with gold plated connectors |
|

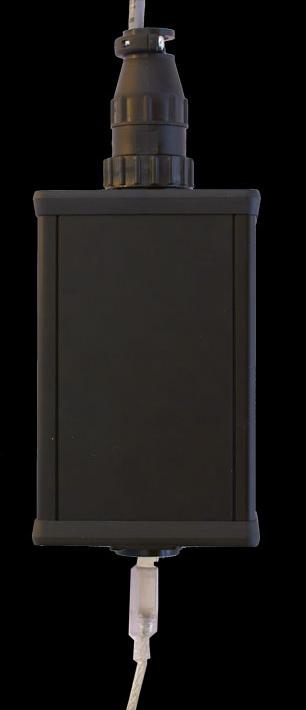

THS FireWorks USB unit
|
USB unit
Price: 2500 SEK
Use the USB-unit to transfer
settings from THS FireWorks software to devices. The unit needs no extra power source to operate, it
takes the power from the USB port on the computer and supplies power to the
devics that you want to program.
|
Specifications
| Chassis: |
Black anodized aluminum |
| Operating voltage: |
5VDC through USB-port |
| |
(Supplies Power to 1 POD16) |
| Power usage: |
~ 100mA |
| Connector In: |
1 USB female type B |
| Connector Out: |
1 - 9pin female CPC series1 with gold plated connectors |
|

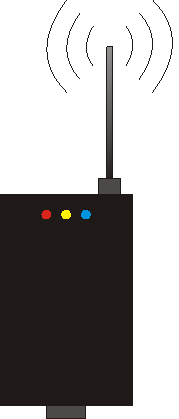

THS FireWorks Wireless unit
|
Wireless
Reciever/Tranciever
Price: 7500 SEK
The Wireless transciever can work both as a transmitter and as a reciever. It
can be used as point-point connection or as point-to-multi point. It is using
the 2.4Ghz frequency and uses standard W-Lan antennas.
|
Specifications
| Chassis: |
Black anodized aluminum |
| Range |
about 2km |
| Frequency |
2.4Ghz |
| Operating voltage |
9-18VDC (typical 12VDC) |
| Power usage: |
~ 100mA |
| Connector In: |
1 - 9pin female CPC series1 with gold plated connectors |
|
Products - Software
All
software are in-house developed and are for Windows only (Windows XP and Windows
7).

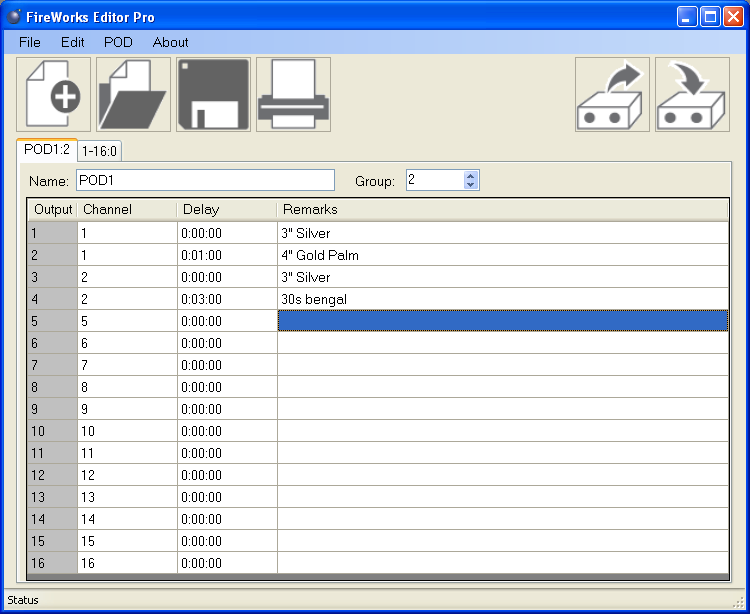

THS FireWorks - Editor
|
Editor
Price: Free with USB-controller
This software download the settings and delays in the POD. It can also upgrade the firmware in the PODs.
|

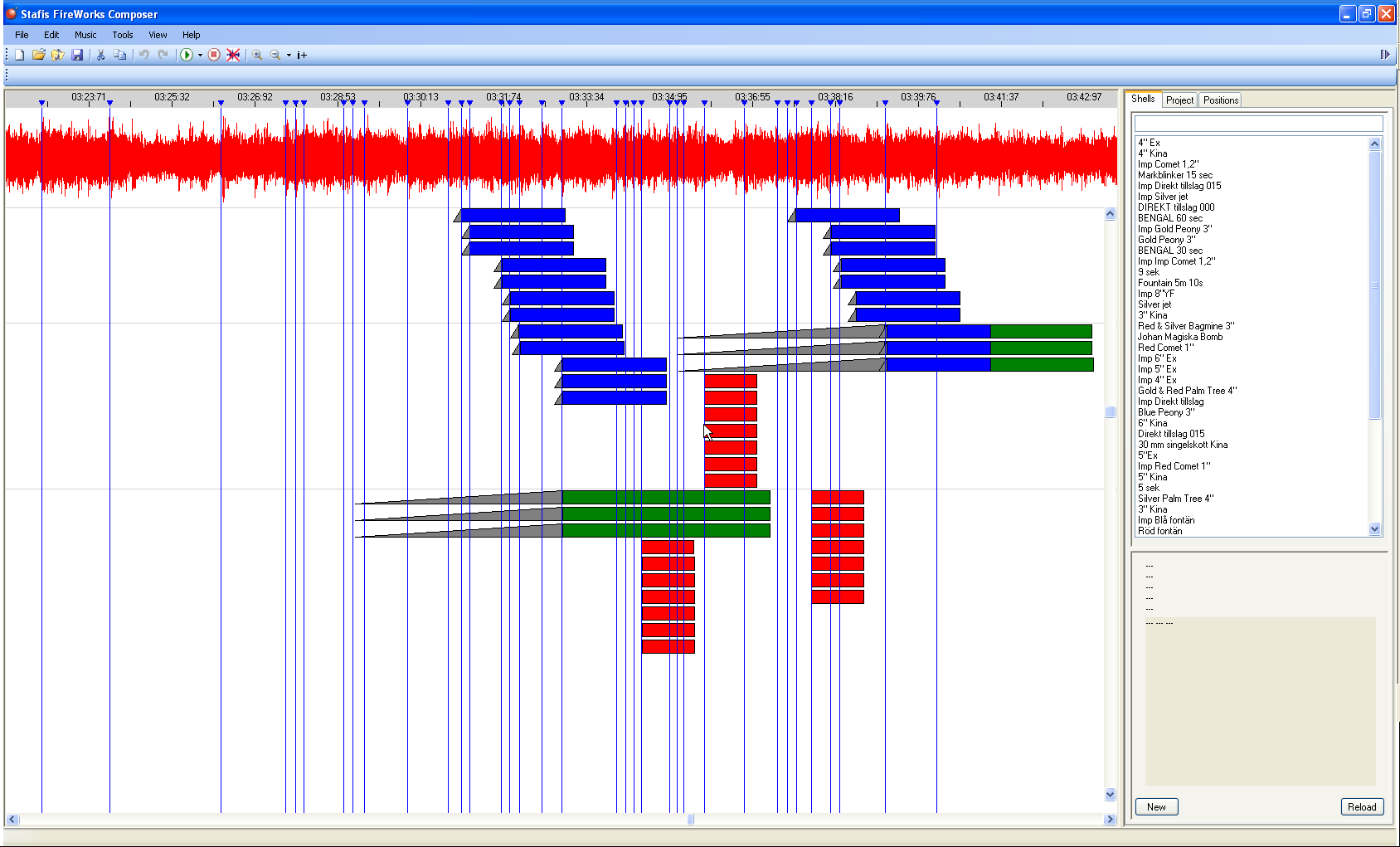

THS FireWorks - Composer
|
Composer
Price: 20000 SEK
With this software you can compose you fireworks with or without music. You place triggers and shells on in the timeline and then the software calculates the delays needed to be programmed into to PODs. The PODs are programmed via the FireWorks Editor. |

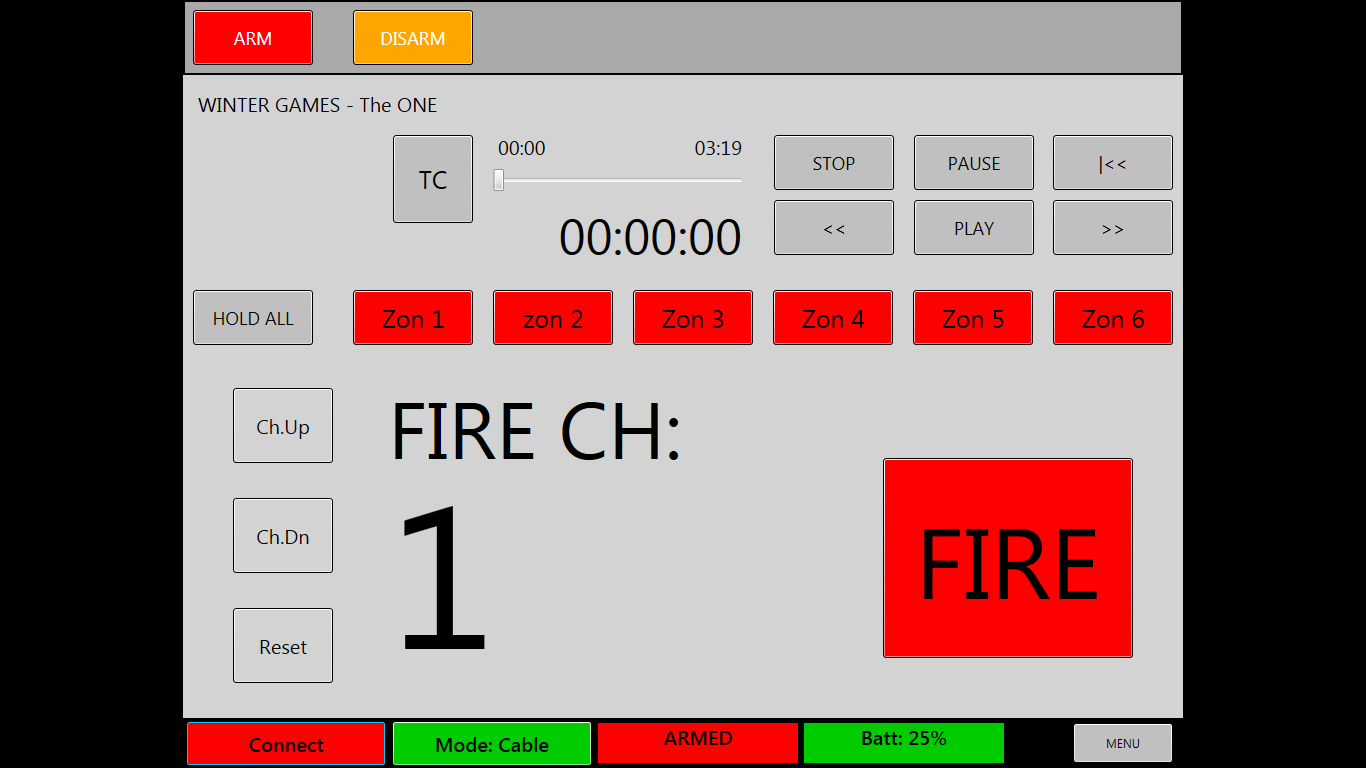

THS FireWorks - Show Assist
|
ShowAssist
Price: Included in Control case / 20000 SEK
This software are in-house developed and can be run on a standard PC (Windows
XP, Windows 7) togheter with a USB devise or with the THS FireWorks
Control case.
With this software you have complete control over you firework setup. You can
check all insertert e-matches, voltage, connection etc.
The Show Assist can also play music or sync to incoming time-code. |
